In this activity, we will observe the pattern of the magnetic field produced by a current-carrying circular coil.

Steps:
  • Take rectangular cardboard which has two holes.
  • Insert a circular coil having a large number of turns through the holes (normal to the cardboard plane).
  • Join the ends of the coil in series with a battery, key, and rheostat (variable resistance), as shown in the below figure.

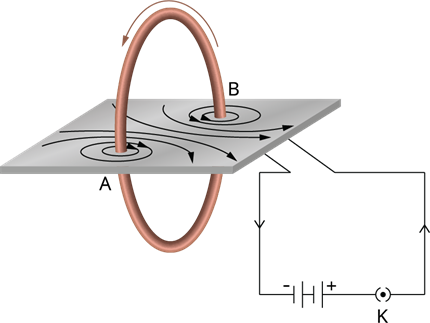

Magnetic field produced by a current-carrying circular coil
  • Spray iron filings uniformly on the cardboard. (You may use a salt sprinkler to spray.)
  • Plug the key
  • Tap the cardboard mildly a few times.
  • Observe the pattern of the iron filings that emerges on the cardboard.

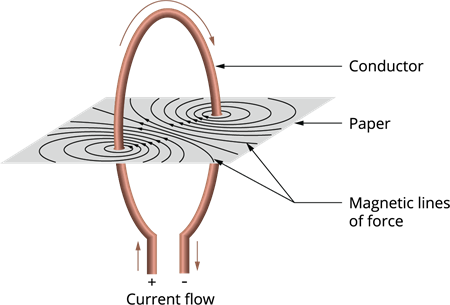

Pattern of the magnetic field produced by a current-carrying circular coil

Observations:

The magnitude of the magnetic field produced by a current-carrying circular wire at its centre is:
  • Directly proportional to the  the circular wire.
  • Inversely proportional to the  the circular wire.
  • The strength of the magnetic field can be  by taking a circular coil consisting of a number of turns of insulated copper wire closely wound together.
  • If a circular coil has 'n' turns, the magnetic field produced by this current-carrying circular coil will be  as large as that produced by a circular loop of a single turn of wire.
