Book Free DemoThermal power station:
- In thermal power stations, thermal or heat energy is generated by burning fuels like coal, diesel or gas.
- This heat or thermal energy is used to boil the water; thereby, we can produce steam. The steam thus produced is made to rotate the turbine.
- The turbine is connected to a coil which is placed between a strong electromagnet. When the turbine rotates, the coil of wire also rotates.
- Thus, an electric current is produced in the coil due to electromagnetic induction. Here, we use heat energy to produce electricity.
![1200px-Trypilska_Thermal_Power_Plant_inside_(1).jpg](https://resources.cdn.yaclass.in/a153806e-694d-4068-9383-11cfff953ee0/1200pxTrypilskaThermalPowerPlantinside1w300.jpg)

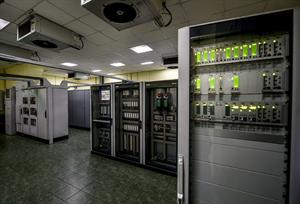

Interior view of thermal power plant
Do you know what is mean by electromagnetic induction?
Electromagnetic induction is a process that produces voltage or emf (electromotive force) across a conductor when it is exposed to a varying magnetic field.
We can also produce voltage or emf by placing a moving coil in the fixed magnetic field.
We can also produce voltage or emf by placing a moving coil in the fixed magnetic field.
It was Michael Faraday who discovered Electromagnetic induction.
The thermal power station in Tamilnadu are
- Neyveli in Cuddalore District
- Ennore in Thiruvallur District
![Ennore_Thermal_Power_Plant.jpg](https://resources.cdn.yaclass.in/bdabde3e-3b36-4915-83bc-c2819f659a5e/EnnoreThermalPowerPlantw300.jpg)

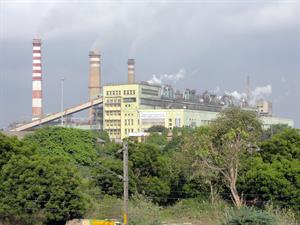

Thermal power plant, Ennore
Hydel power plant:
The hydel power plant is similar to the thermal power plant, but we make use of water from the dam to rotate the turbine.
Why do we use dam water?
- Due to the higher altitude of the dam, the water reaches the turbine with high pressure. When this water is allowed to fall on the turbine, it rotates at a high speed. When the turbine rotates, the current is produced in the coil by electromagnetic induction.
- Thus, the hydel power plant uses the kinetic energy of falling water to generate electricity. Therefore, kinetic energy is converted into electric energy.
The hydel power plants in Tamilnadu are
- Mettur in Salem District
- Papanasam in Tirunelveli District
![1200px-16_gate_Bridge_at_Mettur_dam.jpg](https://resources.cdn.yaclass.in/27f23465-e72a-4914-b696-3804ae8b8891/1200px16gateBridgeatMetturdamw300.jpg)

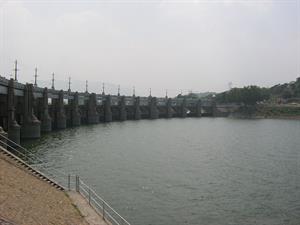

Mettur dam
![1200px-ServalarDam_-_Mundanthurai.jpg](https://resources.cdn.yaclass.in/d60eeedb-c3e2-4fb3-b65f-560ddabfd9f9/1200pxServalarDamMundanthuraiw300.jpg)

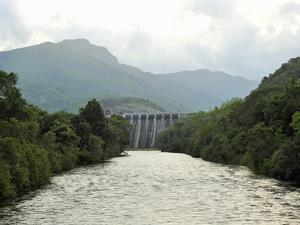

Servalar dam - Papanasam
