(i) Given below are steps for extraction of copper from its ore. Write the reaction involved.

     a
. Roasting of copper (I) sulphide
     b
. Reduction of copper (I) oxide with copper (I) sulphide
     c
. Electrolytic refining

Answer variants:
\(2Cu_2S(s)+3O_2(g)→2Cu_2O(s)+2SO_2(g)\)
\(2Cu_2S(s)+2O_2(g)→2Cu_2O(s)+SO_2(g)\)
\(2Cu_2O(s)+Cu_2S(s)→6Cu(s)+SO_2\)
a. Roasting of copper (I) sulphide:

b. Reduction of copper (I) oxide with copper (I) sulphide:

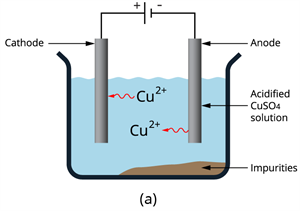

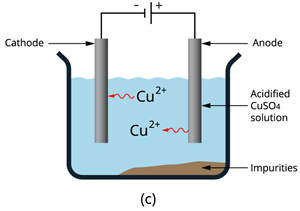

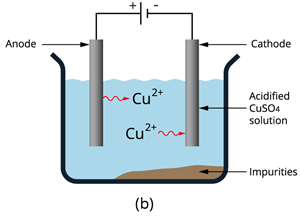

(ii) Draw the neat and labelled diagram for electrolytic refining of copper.

(Note: Select the correct diagram from the given options.)
