Let us now find the position, size and nature of the image by drawing the ray diagram for a small linear object placed on the principal axis of a concave mirror at different positions.

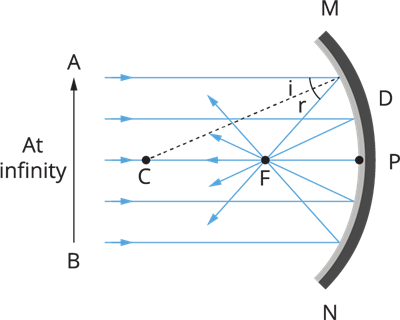

Case-I: When the object is placed at infinity, the rays of light reaching the concave mirror is parallel to each other.
6 (9).png
Position of the Image: The image is formed at the principal focus \(F\).
Nature of the Image: Real, inverted and highly diminished in size.

Case-II: When the object is placed beyond the centre of curvature.

15 (4).png
Position of the image: Between the principal focus \(F\) and centre of curvature \(C\).
Nature of the image: Real, inverted and smaller than an object.

Case-III: When the object is placed exactly at the centre of curvature.

14 (5).png
Position of the image: The image is at the centre of curvature itself.
Nature of the image: Real, inverted, and same size as the object.

Case-IV: When the object is placed between the centre of curvature \(C\) and principal focus \(F\).

13 (5).png
Position of the image: The image is beyond \(C\).
Nature of the image: Real, inverted and magnified.

Case-V: When the object is placed at the principal focus \(F\).

Position of the image: The image is beyond at infinity.
Nature of the image: Real, inverted and magnified.

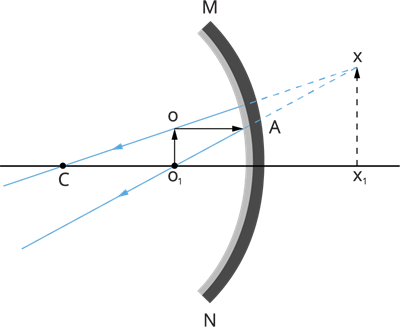

Case-VI: When the object is placed between the focus \(F\) and the pole \(P\).

11 (7).png

Position of the image: The image is behind the mirror.
Nature of the image: Virtual, erect and magnified.
